Draw A Scatter Diagram

Functions, trigonometry, logarithms, sequences and limits - preparing for calculus

Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:23 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

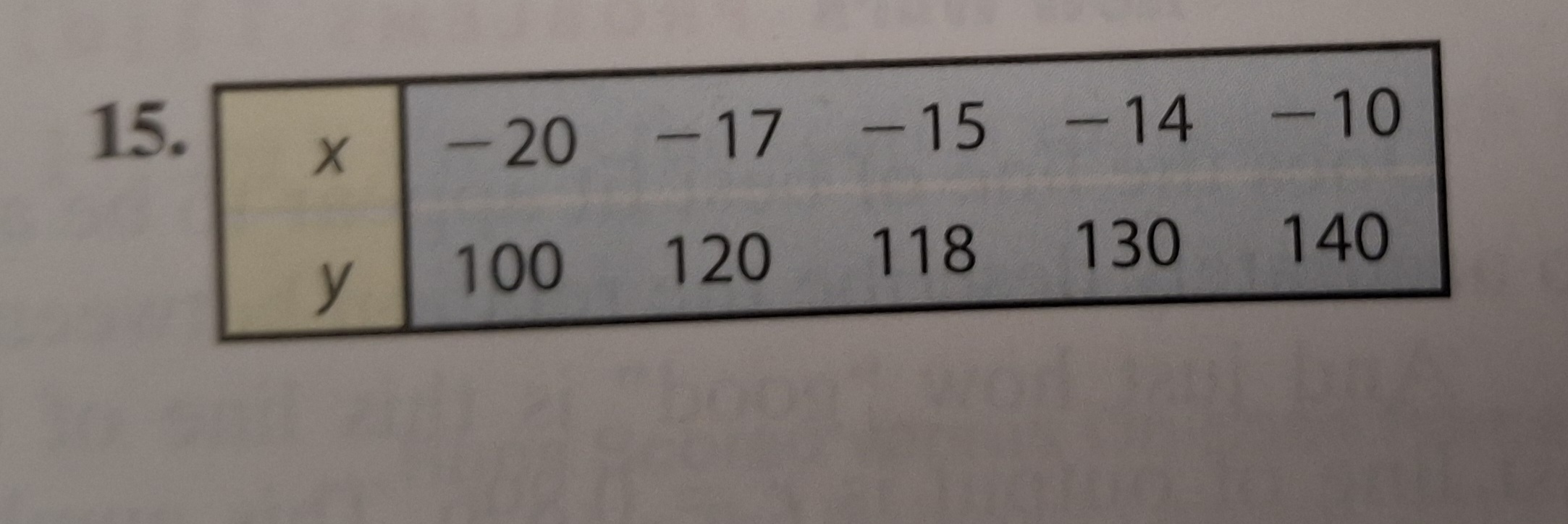

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.
Attachments
nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:25 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

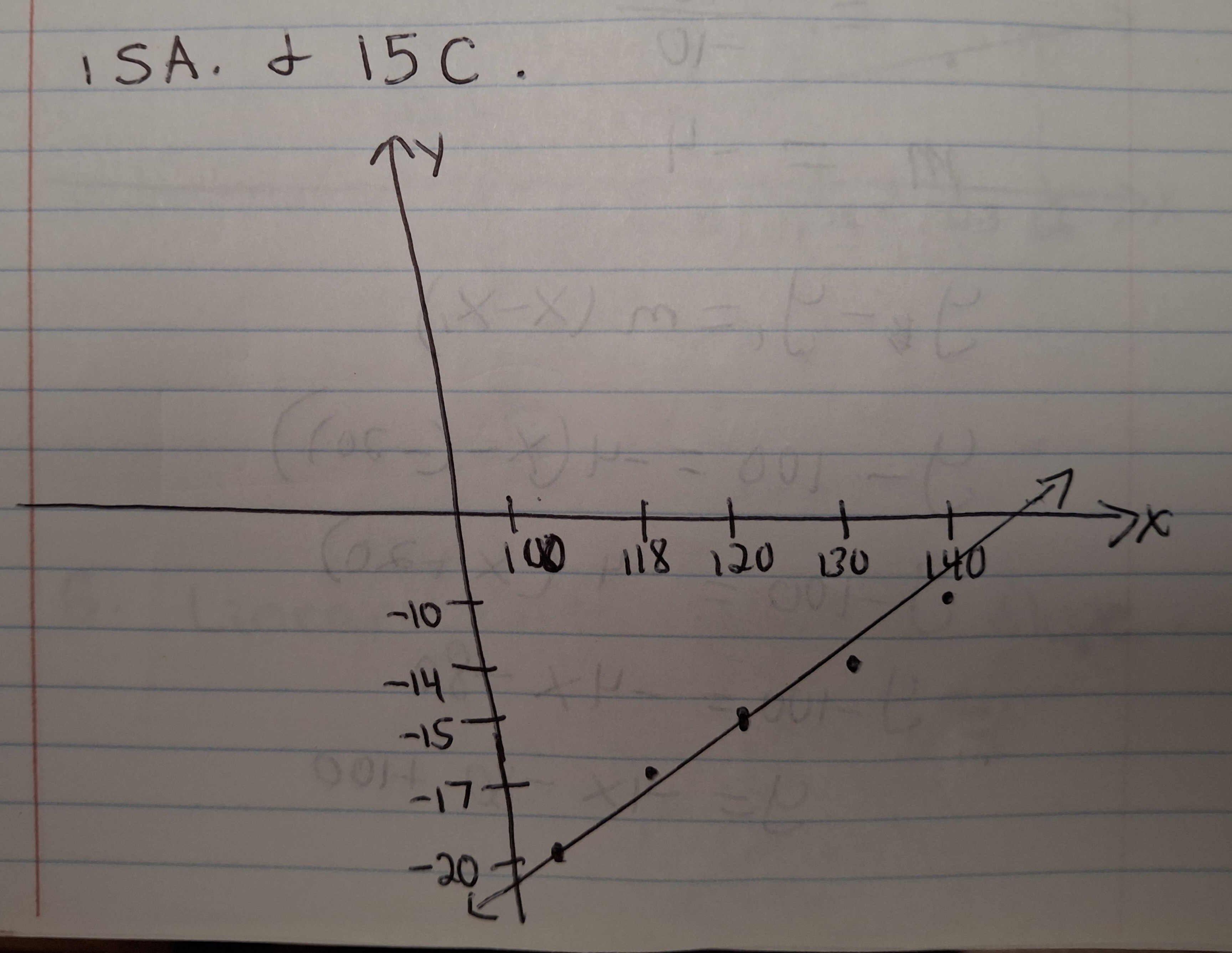

Here we see 15A and 15C.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:26 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

Here we see 15B part 1.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:27 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

Here we see 15B part 2.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby Eigenvalue » Sun Oct 11, 2026 4:44 pm

Your calculations for this question are correct

Note: there are 10 possible slopes. Since you found one already, I can find the other 9 slopes.

Eigenvalue

Posts: 1020
Joined: Mon Aug 10, 2026 10:38 pm
Reputation: 371
