Draw A Scatter Diagram

Functions, trigonometry, logarithms, sequences and limits - preparing for calculus

Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:09 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

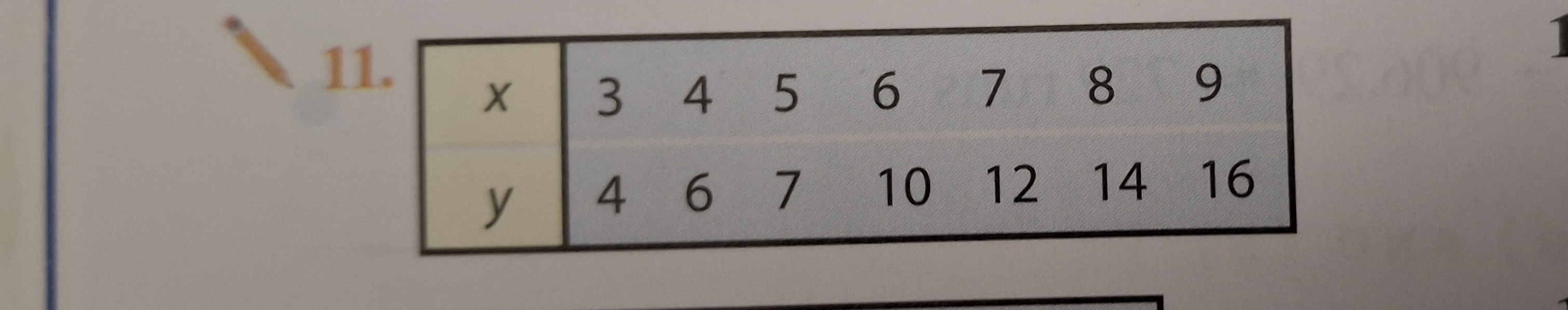

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.
Attachments
nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:11 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

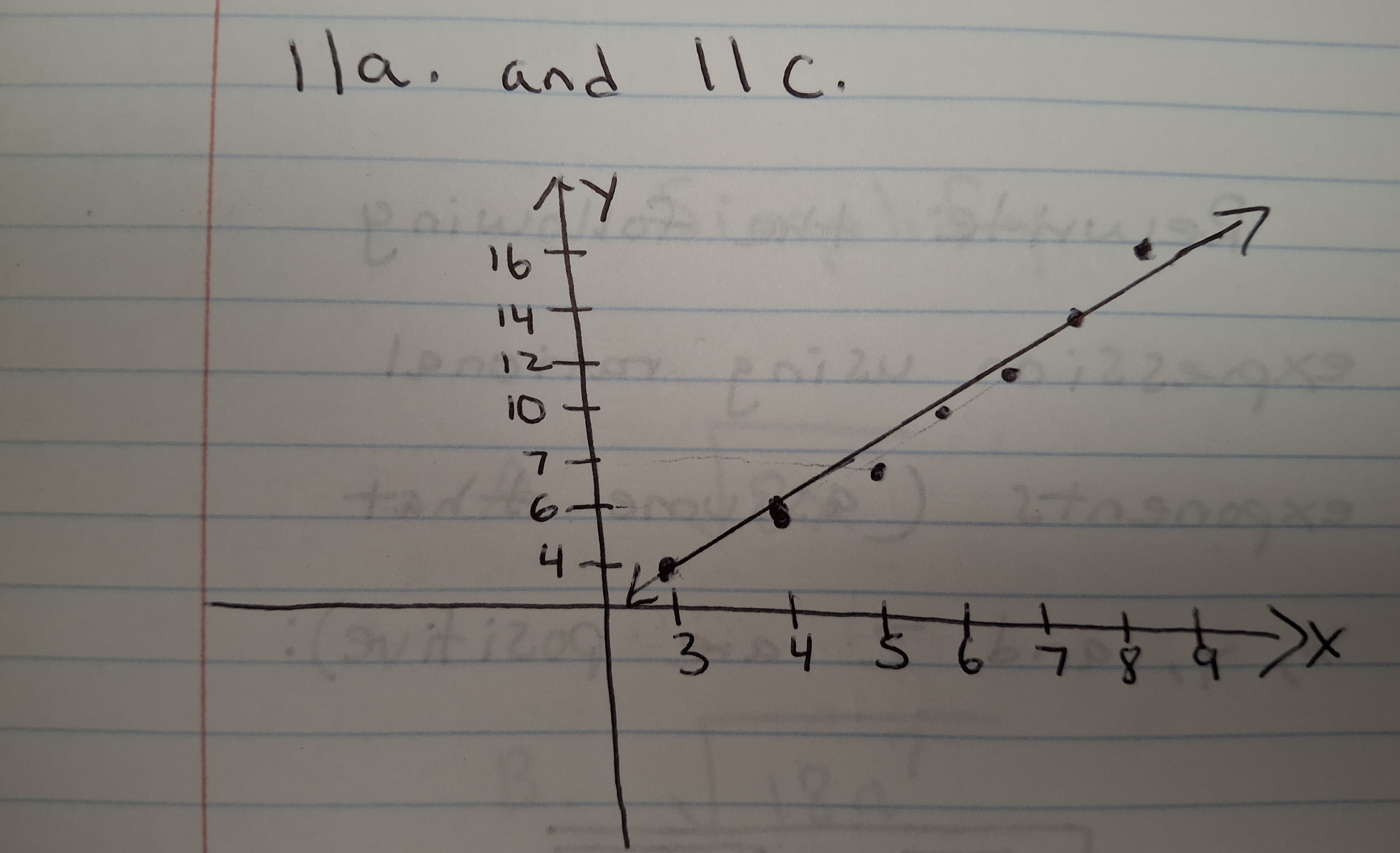

Here we see 11A and 11C.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:12 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

Here we see 11B part 1.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby nycmath » Sun Oct 11, 2026 4:13 pm

Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

Here we see 11B part 2.
Attachments

nycmath

Posts: 1777
Joined: Mon Aug 10, 2026 10:40 pm
Reputation: 67

Re: Draw A Scatter Diagram

Postby Eigenvalue » Sun Oct 11, 2026 4:38 pm

nycmath wrote:Precalculus
Michael Sullivan
Edition 10
Chapter 3, Section 3.2

A. Draw a scatter diagram.
B. Select two points from the scatter diagram, and find the equation of the line containing the points selected.
C. Graph the line in part B on the scatter diagram.

Here we see 11B part 2.


Your slope calculations are correct; there are 6 other slopes, which I will add.

Eigenvalue

Posts: 1020
Joined: Mon Aug 10, 2026 10:38 pm
Reputation: 371
