Pythagoras in 3D

Pythagoras in 3D

Postby Guest » Tue Oct 15, 2019 4:17 pm

I can do question a. I got 25m. But I can't do questions b nor c at all.

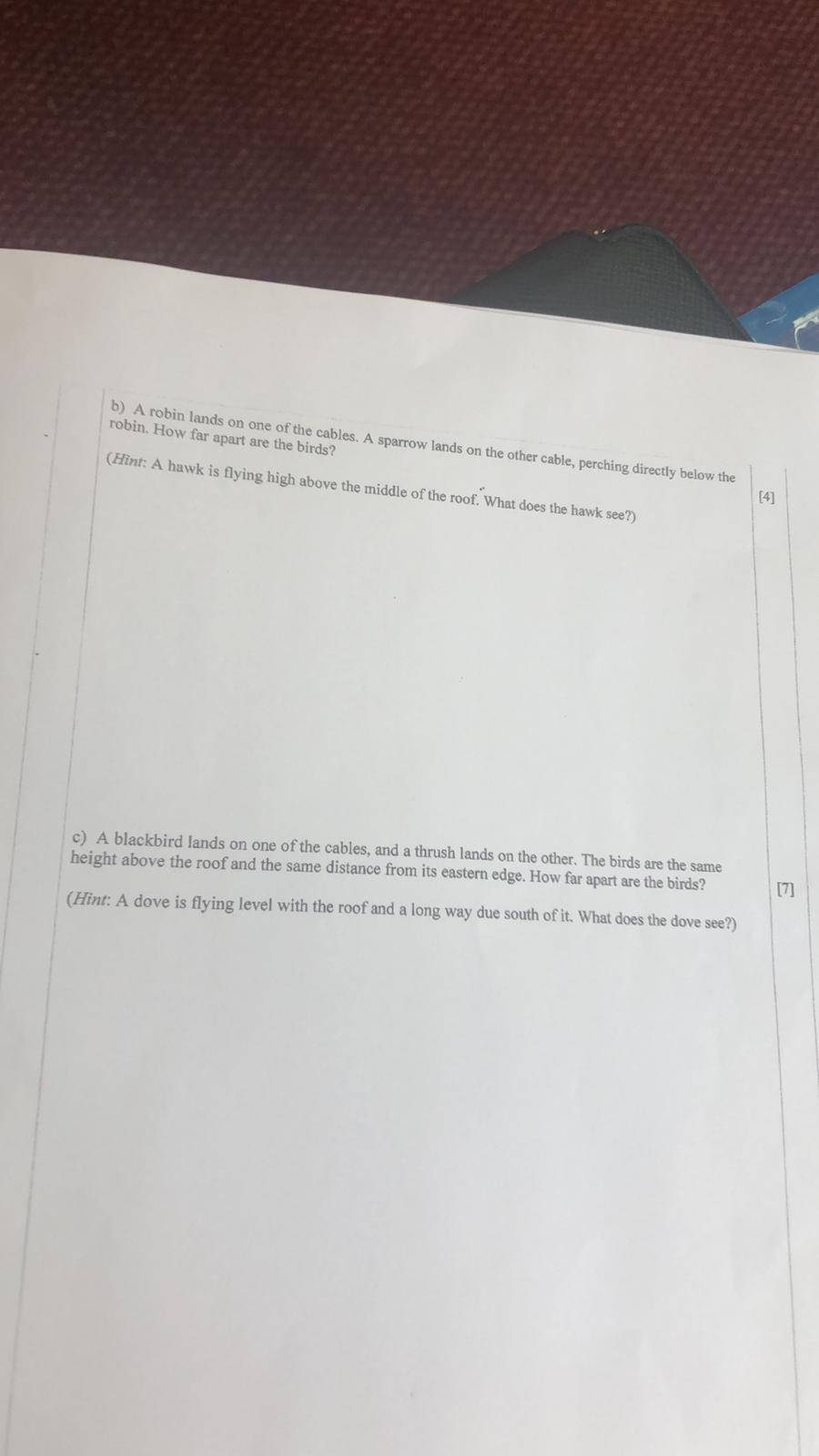

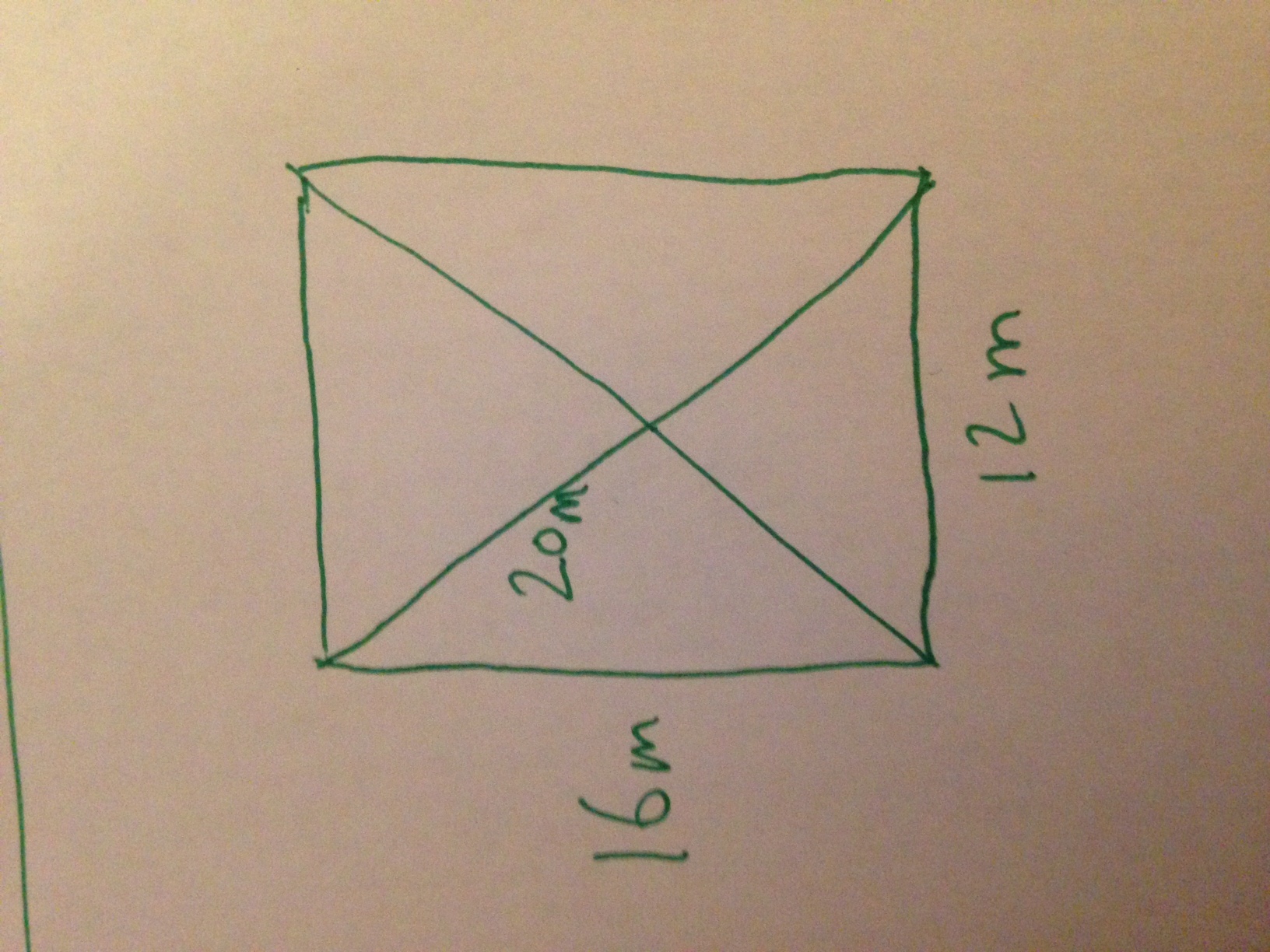

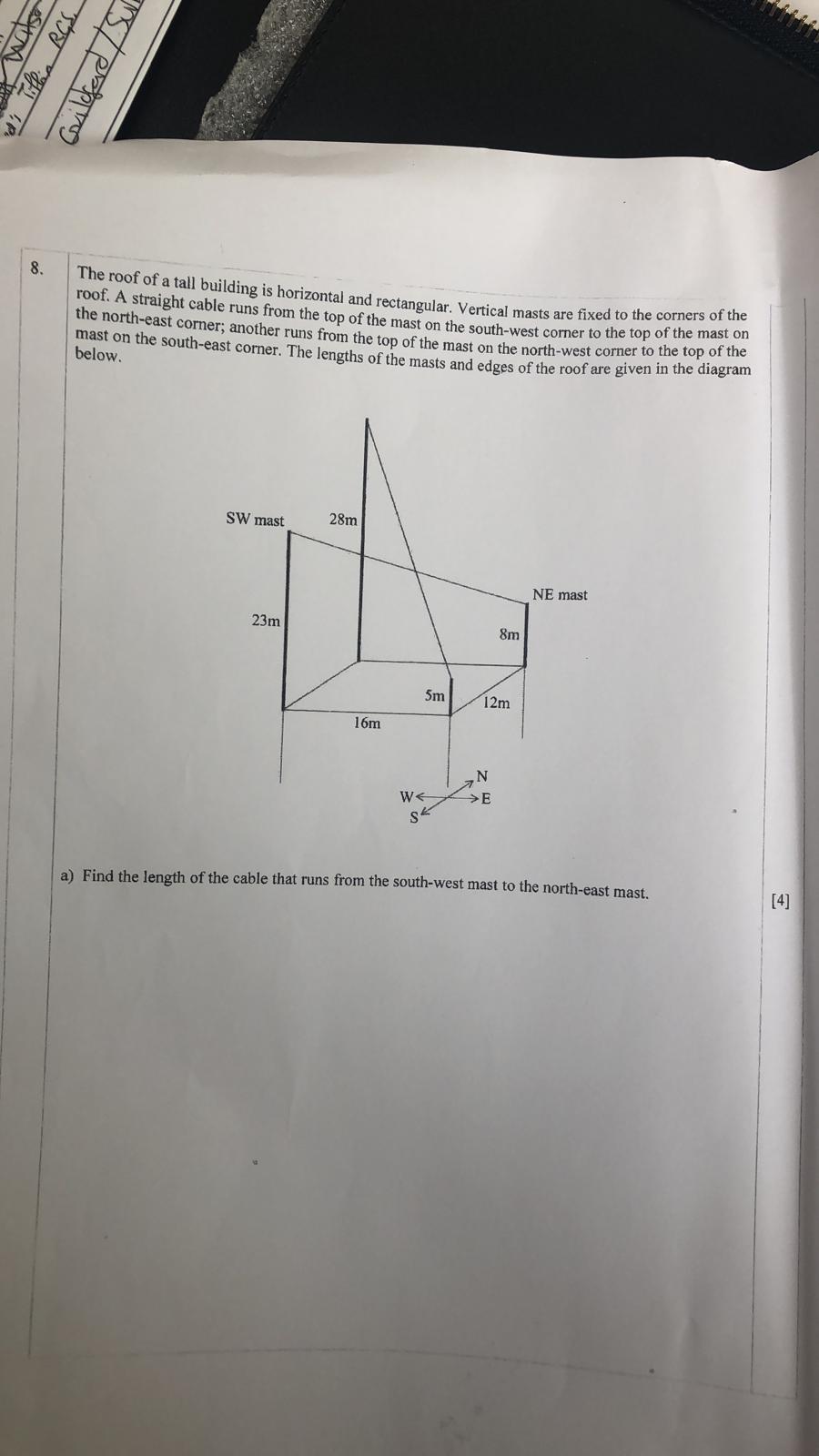

Please see pictures for the questions and the diagram.

Re: Pythagoras in 3D

Postby Baltuilhe » Tue Oct 22, 2019 9:48 pm

Good night!

Let's fix the origin of the coordinates in the base of SW mast.
So, calling A the SW mast top and B the NE mast top:
A(0,0,23) and
B(16,12,8), right?

The distance between them:
So, 25 is right :)

From SW to NE, the 'high' of the middle point is:

From SE to NW, the 'high'of the middle point is:

So, the sparrow is 16,5-15,5=1,0 below the robin.

Try to see that the figure is two trapezes.
They intercept one to each other 6 m distant from the East edge.
And the distance between each cable, is 3.

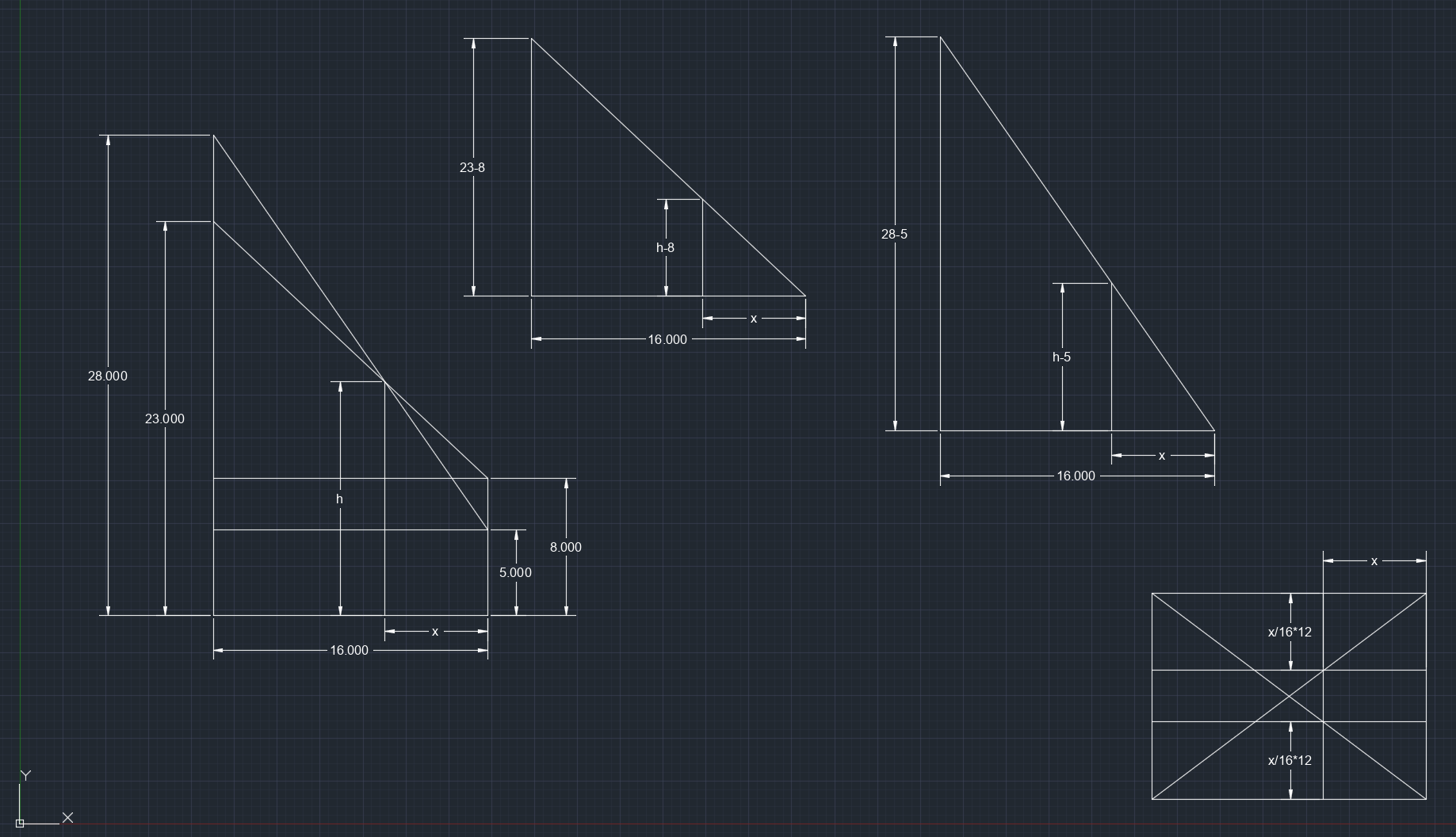

A figure to try to help
Captura de Tela 2019-10-22 às 21.48.08.png
Captura de Tela 2019-10-22 às 21.48.08.png (256.74 KiB) Viewed 280 times

Posts: 47
Joined: Fri Dec 14, 2018 3:55 pm
Reputation: 32
